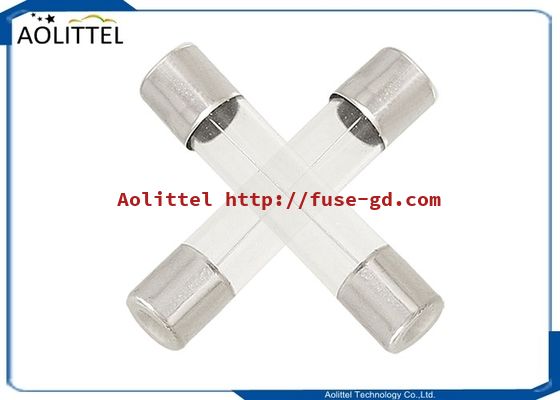

UL cUL Listed 3AB 3AG 6.3x32mm Fast Acting Cartridge Fuses 5A AC 250V 125V Glass Tube Fuse 6.250MFC1500A
Description
The 6.250MFC Fast-Acting Fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
Features
In accordance with UL Standard 248-14

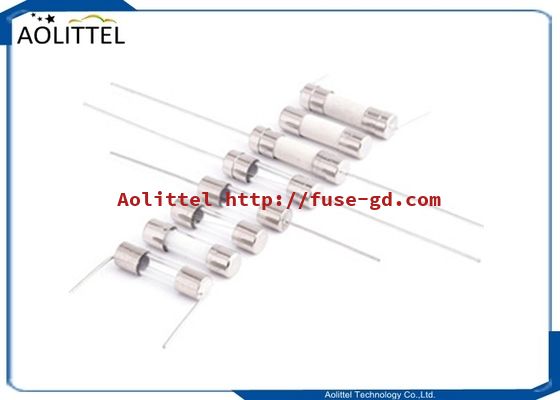

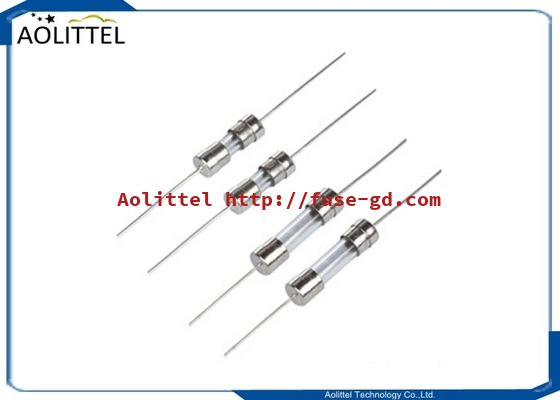

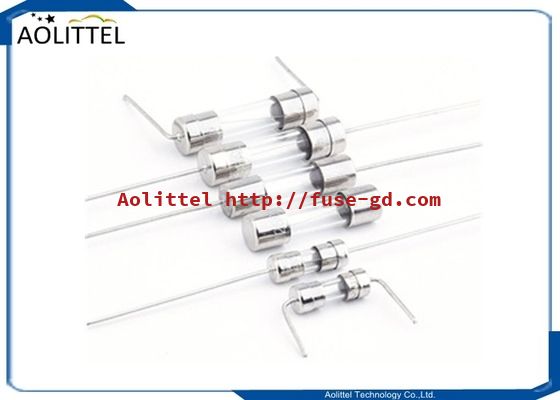

Available in cartridge and axial lead format and with various forming dimensions
RoHS compliant and Lead-free
Certifications
| Voltage Rating | Agency | Ampere Range | Agency File Number |
| 125V/250V | UL | 100mA ~ 30A | E340427 |
| C-UL | 100mA ~ 30A | E340427 |
Specification
A Means 250V ; B means 125V .
| Catalog | Ampere | Voltage | Breaking | I2TMelting |
| No. | Rating | Rating | Capacity | Integral (A2.S) |
| 6.250MFC0100A/B | 100mA | 250V/125V |
10000A@125 V AC (100mA~10A); 35A@250V AC (100mA~1A); 100A@250V AC (1.25A~3.5A); 200A@250V AC (4A~10A). |
0.003 |
| 6.250MFC0160A/B | 160mA | 250V/125V | 0.008 | |
| 6.250MFC0200A/B | 200mA | 250V/125V | 0.02 | |
| 6.250MFC0250A/B | 250mA | 250V/125V | 0.026 | |
| 6.250MFC0300A/B | 300mA | 250V/125V | 0.047 | |
| 6.250MFC0315A/B | 315mA | 250V/125V | 0.055 | |
| 6.250MFC0350A/B | 350mA | 250V/125V | 0.072 | |
| 6.250MFC0400A/B | 400mA | 250V/125V | 0.1 | |
| 6.250MFC0500A/B | 500mA | 250V/125V | 0.16 | |
| 6.250MFC0600A/B | 600mA | 250V/125V | 0.25 | |
| 6.250MFC0630A/B | 630mA | 250V/125V | 0.28 | |
| 6.250MFC0750A/B | 750mA | 250V/125V | 0.49 | |
| 6.250MFC0800A/B | 800mA | 250V/125V | 0.6 | |
| 6.250MFC1100A/B | 1A | 250V/125V | 0.8 | |
| 6.250MFC1125A/B | 1.25A | 250V/125V | 1.6 | |
| 6.250MFC1150A/B | 1.5A | 250V/125V | 2.5 | |
| 6.250MFC1160A/B | 1.6A | 250V/125V | 3.2 | |
| 6.250MFC1200A/B | 2A | 250V/125V | 5.6 | |
| 6.250MFC1250A/B | 2.5A | 250V/125V | 7.6 | |
| 6.250MFC1300A/B | 3A | 250V/125V | 14 | |
| 6.250MFC1315A/B | 3.15A | 250V/125V | 19 | |
| 6.250MFC1350A/B | 3.5A | 250V/125V | 20 | |
| 6.250MFC1400A/B | 4A | 250V/125V | 25 | |
| 6.250MFC1500A/B | 5A | 250V/125V | 42 | |
| 6.250MFC1600A/B | 6A | 250V/125V | 80 | |
| 6.250MFC1630A/B | 6.3A | 250V/125V | 96 | |
| 6.250MFC1800A/B | 8A | 250V/125V | 200 | |
| 6.250MFC2100A/B | 10A | 250V/125V | 320 | |
| 6.250MFC2120A/B | 12A | 250V/125V | 470 | |
| 6.250MFC2150A/B | 15A | 250V/125V | 650 | |
| 6.250MFC2200A/B | 20A | 250V/125V | 870 | |
| 6.250MFC2250A/B | 25A | 250V/125V | 1320 | |
| 6.250MFC2300A/B | 30A | 250V/125V | 1820 |
Dimension and Material
Unit:mm
| NO. | Part Name | Material |
| 1 | Cap | Nickel Plated Brass |
| 2 | Body | Glass Tube |
| 3 | Fuse element | Alloy |
Operating Characteristics
| % of Ampere Rating(In) | Blowing Time |
| 100%* In | 4 hours Min |
| 135%* In | 1 hour Max |
| 200%* In | 60 sec Max |
Interrupting Rating
Breaking Capacity:
10000A at125 V AC (6.250MFC In range 100mA~10A);
35A at 250V AC (6.250MFC In range 100mA~1A);
100A at 250V AC (6.250MFC In range 1.25A~3.5A);
200A at 250V AC (6.250MFC In range 4A~10A).
Recommended Soldering Parameters
A Wave Parameters:
Solder Pot Temperature: 260℃ Max
Solder Dwell Time: 2~5s
B Hand-Solder Parameters:
Solder Iron Temperature: 350±5℃
Heating Time: 5s Max
Packing Quantity
Bulk 200 pcs in per poly bag;10 poly bags in per inner box;4 inner boxes in per outer carton
Box: L240±2 * W170±2 * H110±2mm
Outer carton : L390±5 * W240±5 * H250±5mm
