Aupo Radial Alloy Micro Thermal Cutoff Fuse TF 102℃ 250V 2A A1-F Iron Organic Non-Resettable One Time Fuse Links

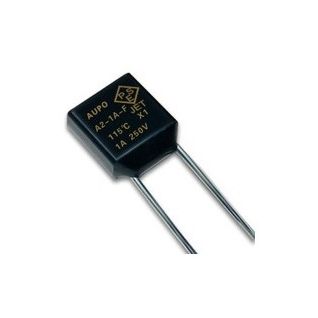

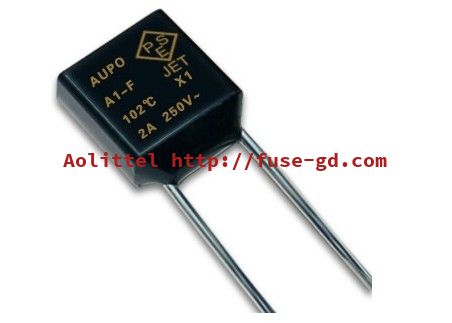

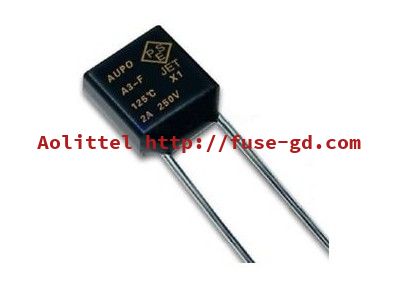

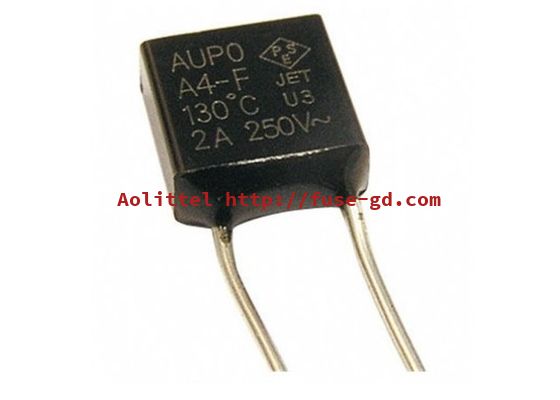

Aupo Radial Alloy Micro Thermal Cutoff Fuse TF 102℃ 250V 2A A1-F Iron Organic Non-Resettable One Time Fuse Links Aupo Radial Alloy Micro Thermal Cutoff Fuse TF 102℃ 250V 2A A1-F Iron Organic Non-Resettable One Time Fuse Links Aupo Radial Alloy Micro Thermal Cutoff Fuse TF 102℃ 250V 2A A1-F Iron Organic Non-Resettable One Time Fuse Links Aupo Radial Alloy Micro Thermal Cutoff Fuse TF 102℃ 250V 2A A1-F Iron Organic Non-Resettable One Time Fuse Links

Aupo Radial Alloy Micro Thermal Cutoff Fuse TF 102℃ 250V 2A A1-F Iron Organic Non-Resettable One Time Fuse Links

Product Tags :
Product Attributes :
Specifications
Link Type: Thermal Cutoff Fuse
Rated Voltage: 250V
Rated Current: 2A
Lead Orientation: Radial
Body Length: 6.2mm
Body Width: 2.5mm
Body Height: 6.3mm
Wire Diameter: 0.6mm
Function Temp: 102C
Color: Black
Highlight:

one time thermal fuse

,

aupo thermal fuse

Product Description
Product Description



Aupo Radial Alloy Micro Thermal Cutoff Fuse TF 102℃ 250V 2A A1-F Iron Organic Non-Resettable One Time Fuse Links





AUPO Radial Thermal Fuses


The AUPO thermal cut-off is an unresettable thermal protect instrument. Used in household appliances and industry these instruments are perfect for thermal protection. The AUPO thermal fuse comes in an all sealed

structure that ensures stability and reliability.

Extremely sensitive to ambient temperature
Precise and stable functioning temperature
Compact and reliable
Epoxy sealed structure
Approved by various international standards





Features and Benefits


PCB Wire Ended
Thermal fuses protect equipment against fire or thermal damage due to overload or overcharge. Suitable for use with standard single phase supplies up to 250V (230V typical). Temperature gradient: 1°C per minute.





Dimension



Aupo Radial Alloy Micro Thermal Cutoff Fuse TF 102℃ 250V 2A A1-F Iron Organic Non-Resettable One Time Fuse Links 1

Aupo Radial Alloy Micro Thermal Cutoff Fuse TF 102℃ 250V 2A A1-F Iron Organic Non-Resettable One Time Fuse Links 2





Electrical Performances



Model NO Rated functioning temp. Fusing-off temperature Holding temperature Maximum temp .limit Rated current Rated voltage
P/N (Tf)   (Th) (Tm) (Ir) (Ur)
A0-F 84℃ 82±2℃ 65℃ 203℃ 2A 250V
A1-F 102℃ 98±2℃ 80℃ 203℃ 2A 250V
A2-F 115℃ 112±3℃ 99℃ 203℃ 2A 250V
A3-F 125℃ 120±3℃ 105℃ 203℃ 2A 250V
A4-F 130℃ 126±2℃ 107℃ 203℃ 2A 250V
A5-F 135℃ 131±3℃ 115℃ 203℃ 2A 250V
A7-F 138℃ 135±2℃ 118℃ 203℃ 2A 250V
A12-F 145℃ 140±2℃ 126℃ 203℃ 2A 250V
A8-F 150℃ 145±3℃ 128℃ 203℃ 2A 250V
A16-F 160℃ 155±2℃ 140℃ 203℃ 2A 250V





Soldering characteristic of A Series Thermal Links



Test method: Put the terminal of a thermal cutoff into the solder bath (shown in the figure) at a point of
predetermined temperature. Change the tin dipping time and tinning distance. Then check the state of the thermal cutoff.

Aupo Radial Alloy Micro Thermal Cutoff Fuse TF 102℃ 250V 2A A1-F Iron Organic Non-Resettable One Time Fuse Links 3

*Number of specimens: 20



Test Result: As shown below



Conditions 400±5℃ One Lead Soldered L2＝20mm
L1(mm) 10 15 20
Time(s) 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7
A1-F ○ ○ ○ △ × × × ○ ○ ○ ○ △ × × ○ ○ ○ ○ ○ △ ×
A2-F ○ ○ ○ ○ △ × × ○ ○ ○ ○ ○ △ × ○ ○ ○ ○ ○ ○ △
A3-F ○ ○ ○ ○ △ × × ○ ○ ○ ○ ○ △ × ○ ○ ○ ○ ○ ○ ○
A4-F ○ ○ ○ ○ ○ △ × ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
A5-F ○ ○ ○ ○ ○ △ × ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
A7-F ○ ○ ○ ○ ○ △ × ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
A8-F ○ ○ ○ ○ ○ △ × ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○





Conditions 400±5℃ Two Lead Soldered L2＝20mm
L1(mm) 10 15 20
Time(s) 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7
A1-F △ × × × × × × ○ △ × × × × × ○ ○ △ × × × ×
A2-F ○ △ × × × × × ○ ○ △ × × × × ○ ○ ○ ○ ○ △ ×
A3-F ○ ○
