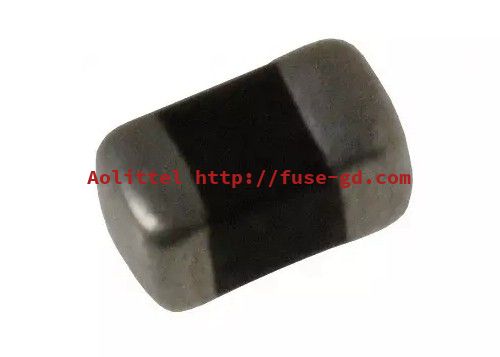

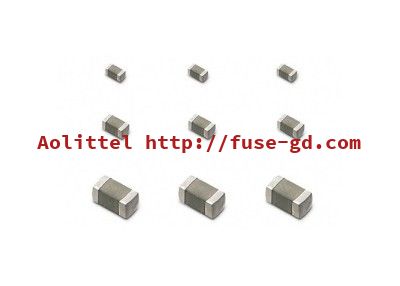

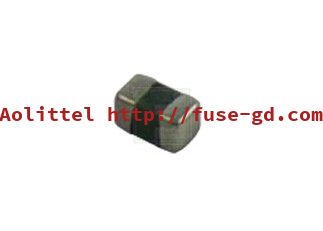

Surface Mount MLV MLCV SMD 1608 Metric Multilayer Chip Metal Oxide Varistor MVR0603-8R0G 8V 30A For Surge Protection
mov metal oxide varistor
,varistor surge protection
Surface Mount MLV MLCV SMD 1608 Metric Multilayer Chip Metal Oxide Varistor MVR0603-8R0G 8V 30A For Surge Protection
DESCRIPTION
The MVR series is metal oxide based chip varistor for transient voltage suppression. They have non-linear voltage-current behavior, similar to zener diode. Multilayer structured varistor, however, shows superiority in electrical reliability than zener diode, since each grain exhibits small p-n junction. In addition, MVR series shows better electrical properties such as high clamping voltage and low leakage current.
APPLICATIONS
* Protection from transient voltage noise in all kinds of IC
* Protection from ESD, EFT and surge in power I/O port
* Replacement of zener diode
FEATURES
* Chip varistor provides high reliability on surface mounting
* Wide range of working voltage (VW = 5.6V˜30V)
* Good clamping ratio and low leakage current
* Electroplating of Ni and solder gives higher solderability
* Wide operating temperature (-55˜125°C )
* Various capacitance is available
Dimension(mm)
| Model | 1005(0402) | 1608(0603) | 2012(0805) | 3216(1206) | 3225(1210) | 4532(1812) | 5750(2220) | 8050(3220) |
|
Length (L) |
1.00±0.15 | 1.60±0.20 | 2.00±0.20 | 3.20±0.20 | 3.20±0.20 | 4.50±0.30 | 5.70±0.30 | 8.0±0.30 |
| Width(W) | 0.50±0.15 | 0.80±0.20 | 1.20±0.20 | 1.60±0.20 | 2.50±0.20 | 3.20±0.20 | 5.00±0.30 | 5.00±0.30 |
| High(H) | 0.70max | 0.90max | 1.30max | 1.60max | 2.50max | 3.20max | 4.50max | 4.50max |
