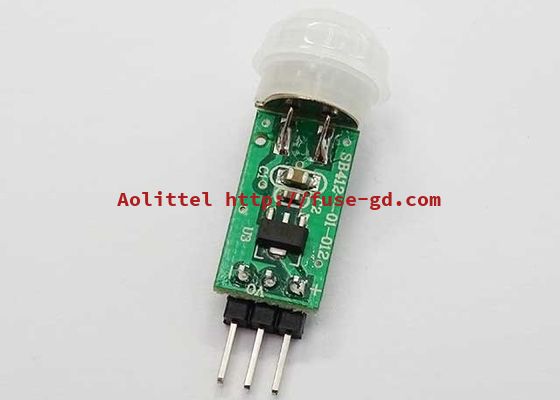

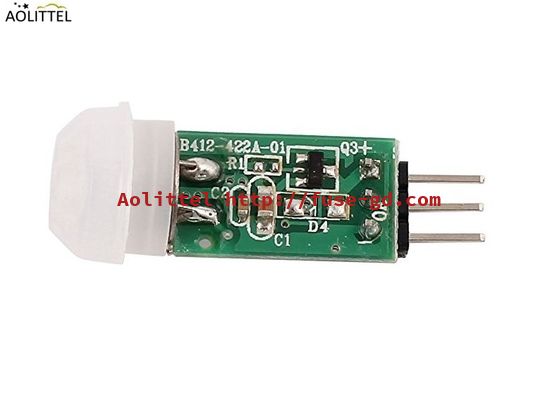

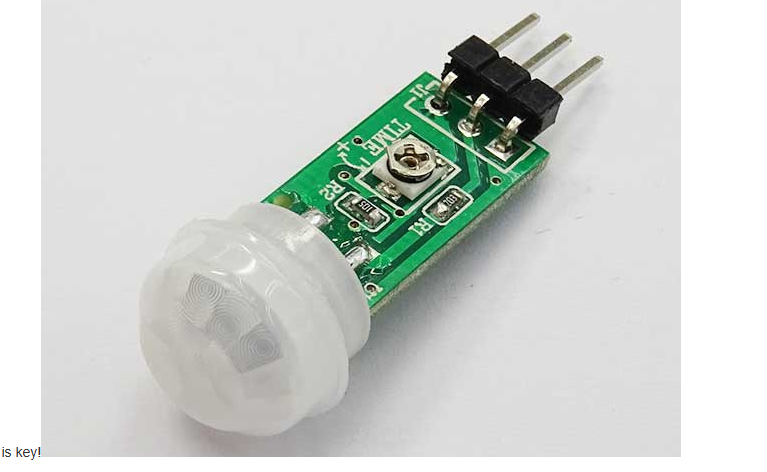

3m-5m Miniature Controller PIR Dectector Module Passive Infrared Motion Sensor SB412 With Fresnel lens PCB Resistor
Product Attributes :
Specifications
Product Name: Passive Infrared Motion Sensor SB412
Full Part Number: SB412A-01-003
Sensor Distance: 3-5m

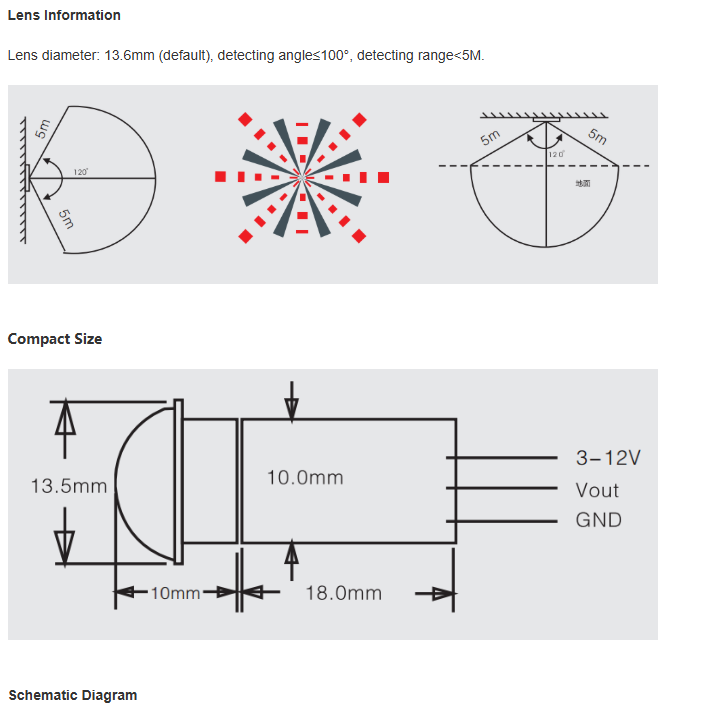

Sensor Angle: 100 Degree
Net Weight: 6g
Main Color: White, Green
Working Voltage: DC 3-24V
Max. Static Current: 1mA
Delay Time: 2 Sec-80min(customized)
Working Temp: -20C To +60C

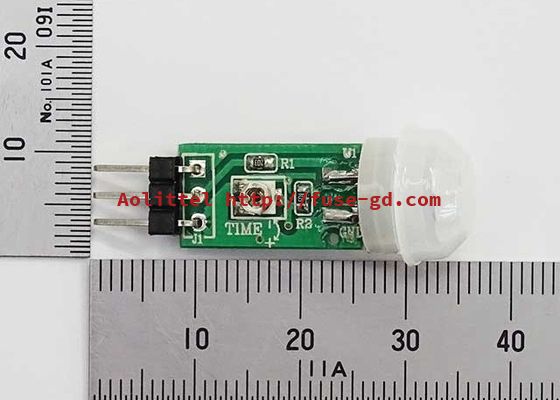

Dimension: 18*10 Mm
Blockade Time: 2 Sec
No. Of Pin: 3 Pins
Trigger Mode: Repeatable Triggered
Product Description
Product Description
3m-5m Miniature Controller PIR Dectector Module Passive Infrared Motion Sensor SB412 With Fresnel lens PCB Resistor
Main Parameters
| Type: | SB412 |
| Size: | 18*10mm |
| Supply Current: | DC3V~12V |
| Current Drain: | <20μA |
| Voltage Output: | High level signal:3.0V Stanby output is 0V |

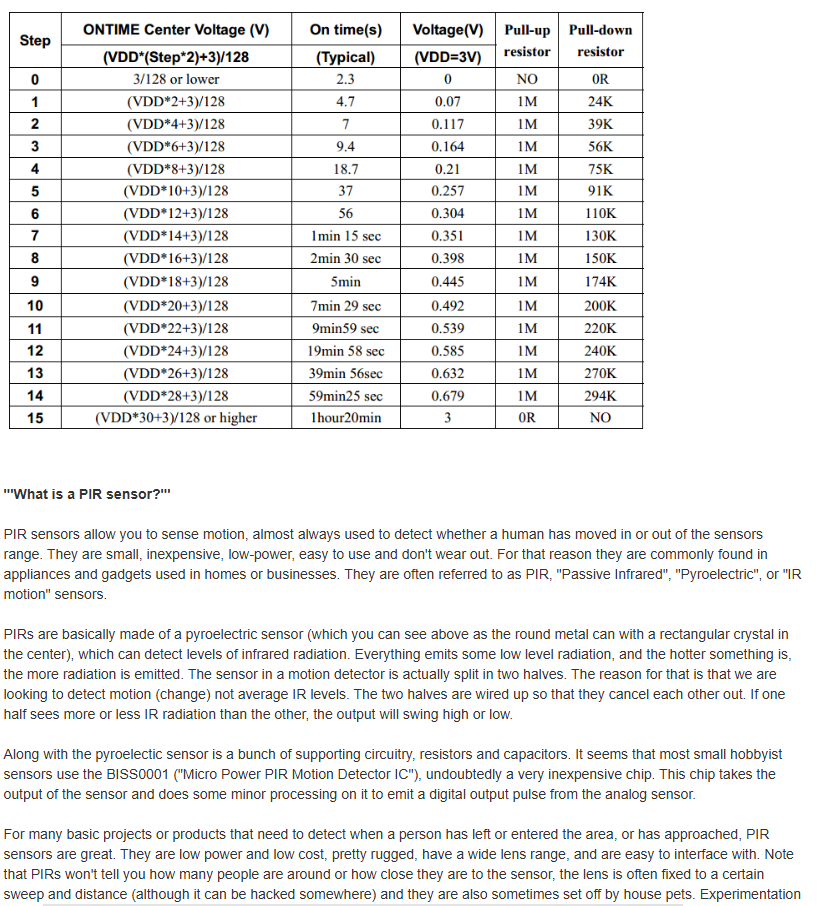

| Delay Time: | Delay time adjustable |
| Operation Temperaute: | -20℃~60℃ |
| Infrared Sensor: | Dual element,Low noise, High Sensitivity |
| Light Sensor: | No CdS |
| TTL Output: | TTL Output can be directly connected to micro-controller or logic device |
| Sensitivity: | High Sensitivity |
General
SB412A is the latest digital sensor module that based on AM412 digital sensor. It only contain a
fresnel lens, PCB, and a few resistance
