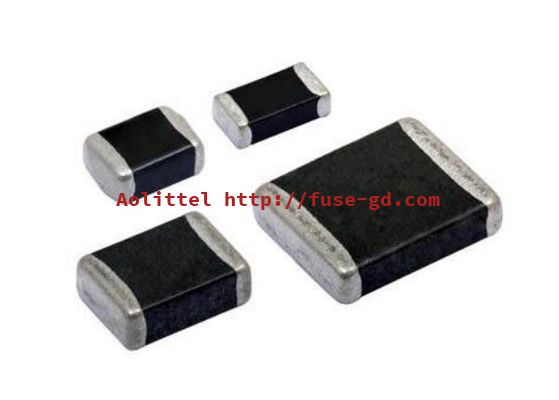

Automotive 3216 Thick Film SMD 1206 Multilayer Surge Suppressor Chip Metal Oxide Varistor 47V 40% For Modem Protection
Product Attributes :
Specifications
Product Category: SMD Metal Oxide Varistor
Termination Style: SMD/SMT
Package / Case: 1206 (3216 Metric)
Voltage Rating AC: 30V
Voltage Rating DC: 38V
Clamping Voltage: 77V
Peak Surge Current: 200A
Surge Energy Rating: 1.0 J
Highlight:
mov metal oxide varistor
,varistor surge protection
Product Description
Product Description
Automotive 3216 Thick Film SMD 1206 Multilayer Surge Suppressor Chip Metal Oxide Varistor 47V 40% For Modem Protection
Features
• SMD type metal oxide varistors
• Ideal for countermeasures against ESD (Conforming to IEC61000-4-2)
• High maximum energy type
• Low leakage current
• High resistance to cyclic temperature stress
• Suitable for both flow and reflow soldering
• Products with lead-free terminations meet EU RoHS requirements. Pb located in glass material, electrode
and varistor element is exempt per Annex 1, exemption 5 of EU directive 2005/95/EC
• AEC-Q200 Qualified
